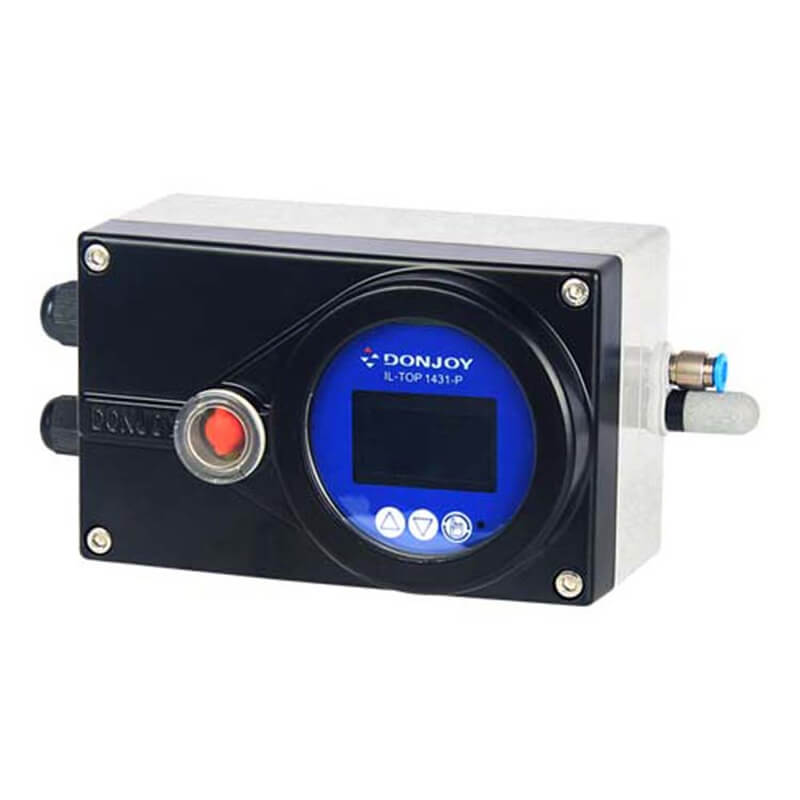

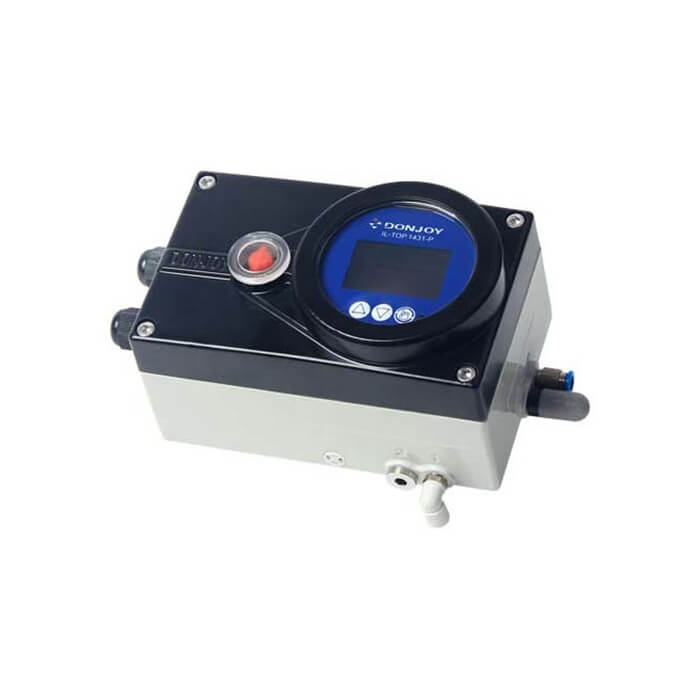

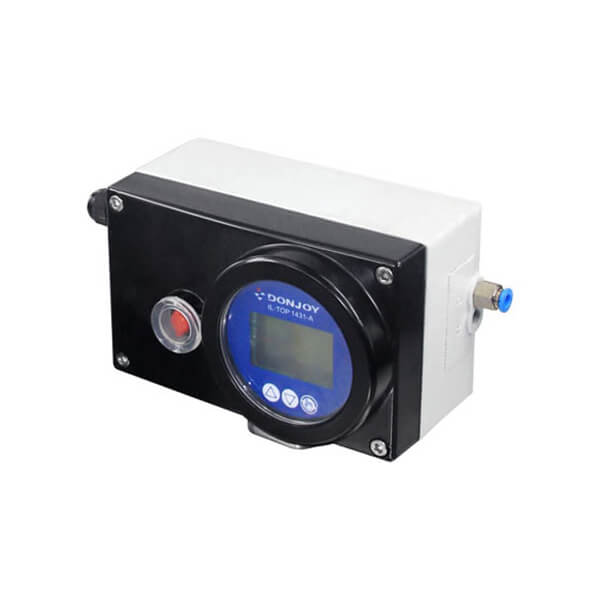

Valve Positioner IL-TOP-1441

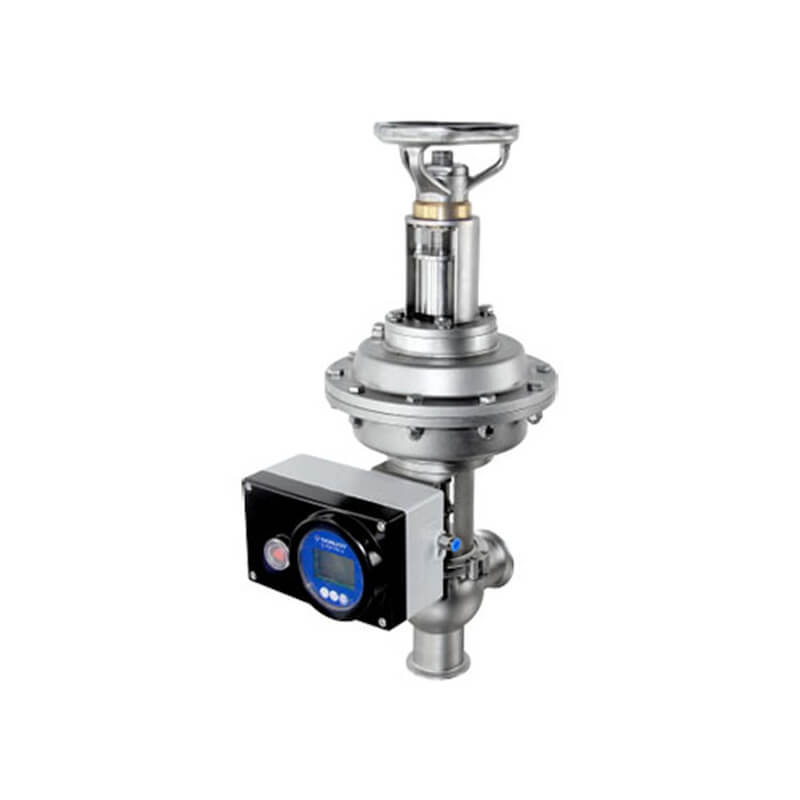

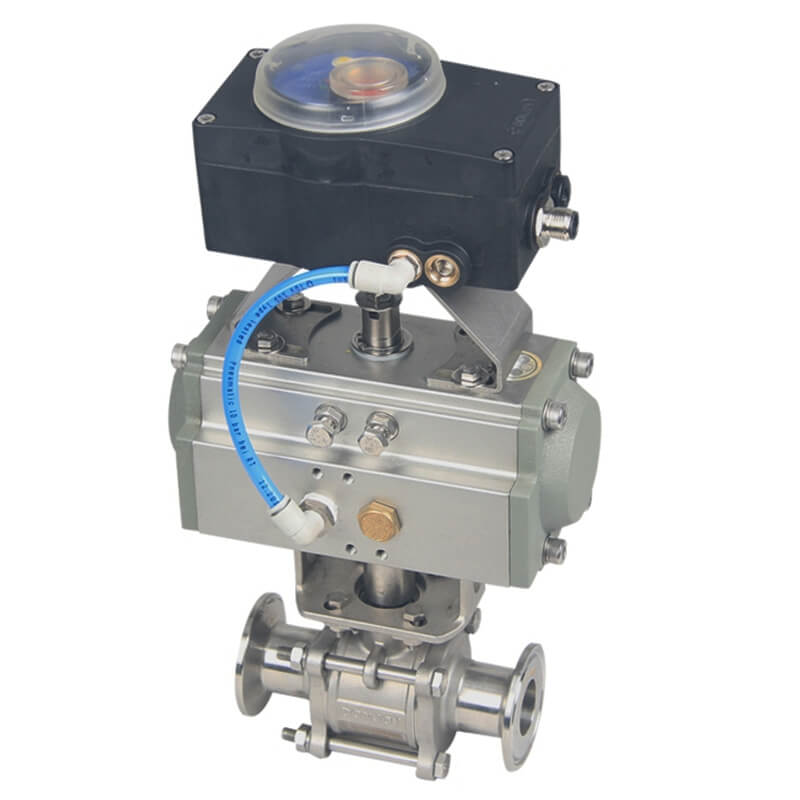

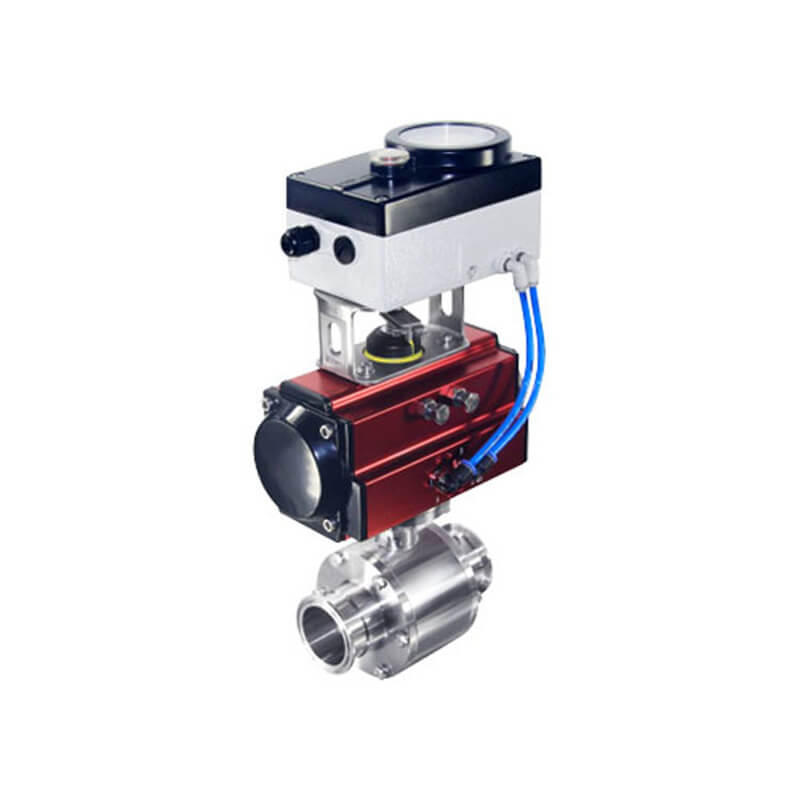

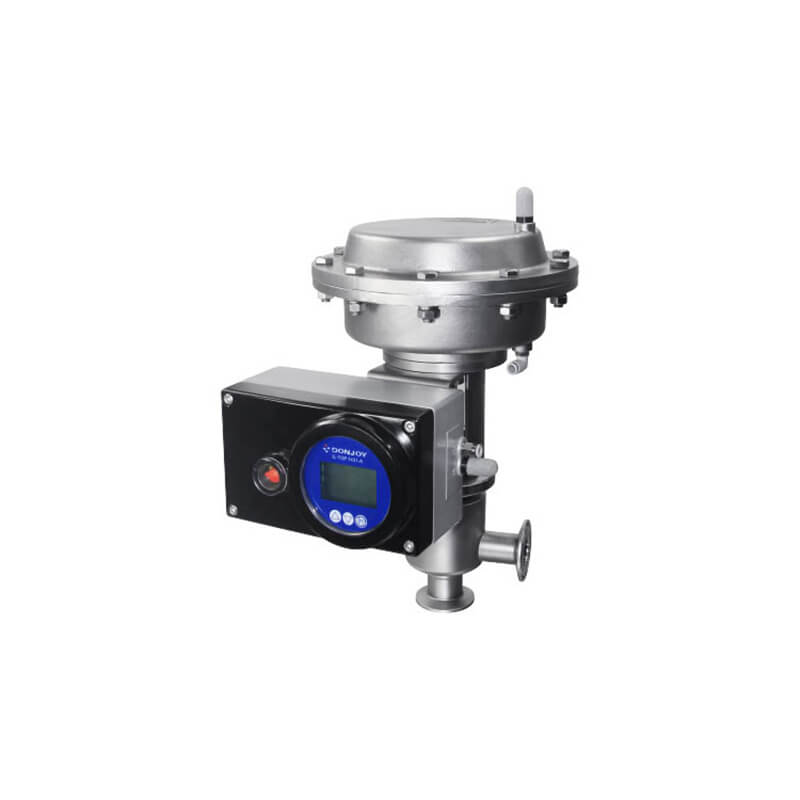

Donjoy Valve Positioner IL-TOP-1441 is a rotary angular stroke pneumatic valve positioner, It can locate valve position by setting value. Also used as a processing controller. It can be installed to a variety of pneumatic valves, such as pneumatic ball valves, globe valves and membrane pneumatic regulators. Donjoy valve positioner support RS485 communication protocol, input 0/4-20mA, powered by DC24V.

Details about Valve Positioner IL-TOP-1441

Specification

Communication support

MODE BUS RS485

Input

0/4 … 20mA to 0 … 5 / 10V signal input (standard)

Output

0/4 … 20mA to 0 … 5 / 10V position feedback output (option)

Operation

Single-acting / double acting (option)

Power supply

DC 24V ± 10%

Air pressure

5.0-7.0Bar (suggest)

Protect class

IP68

Certification

EU ATEX explosion-proof II 3 G Ex ic IIC T6 Gc

Valve Positioner IL-TOP-1441 Description:

Donjoy Valve Positioner IL-TOP-1441 is a rotary angular stroke pneumatic valve positioner, It can locate valve position by setting value. Also used as a processing controller. It can be installed to a variety of pneumatic valves, such as pneumatic ball valves, globe valves and membrane pneumatic regulators. Donjoy valve positioner support RS485 communication protocol, input 0/4-20mA, powered by DC24V.

valve positioner



Intelligent Valve Positioner Specification

Control input: 0/4-20mA/0-5V/10V
Feedback output: 0/4-20mA/0-5V/10V
Power supply: DC24V ± 10%
Bus communication: MODE BUS RS485
Accuracy: Repeat positioning accuracy ≤ 0.2%;
Menu: OLED display Chinese & English
Setting: One-button auto-tuning function
Operating mode: manual/automatic
Fault: gas cut, power off, automatic valve position reset (standard) valve position hold function (optional)
Stroke angle: 0-180°
●No air consumption when the valve position is maintained
●Power supply: DC24V ±10%
●Scope of application: straight stroke and angular travel 30°-180°
●Aluminium alloy casing
●Explosion-proof grade ExdIIBT4 (optional)
●IP68 protection level





Valve Positioner Mounting Dimension

Valve positioner 1441 mounting dimension



Valve Positioner Side Mounting

Valve positioner 1441 side mounting



Valve Positioner Customized for Actuator

We could customize the valve positioner for the different brand actuator. (Require actuator dimension)

valve positioner assembly

Frequency Ask Question

Please firstly leave message below for product you need and requirement,I will send you quotaion sheet,then choose the transportation way and check cost,we will send you Proforma invoice for confirm,at last make the payment and we will ship the goods to you.

Delivery time depends on quantity and type of products,for valve and pipe fittings regular is about 7-20days. For pump regular is about 15-25days.

For small amount we require 100% before production.For big amount,regularly T/T 30% deposit, 70% before shipment.

By Bank T/T, L/C, By Alibaba Assurance Order accept Credit Card VISA, Mastercard, E-checking, and we could’t accept Paypal.
