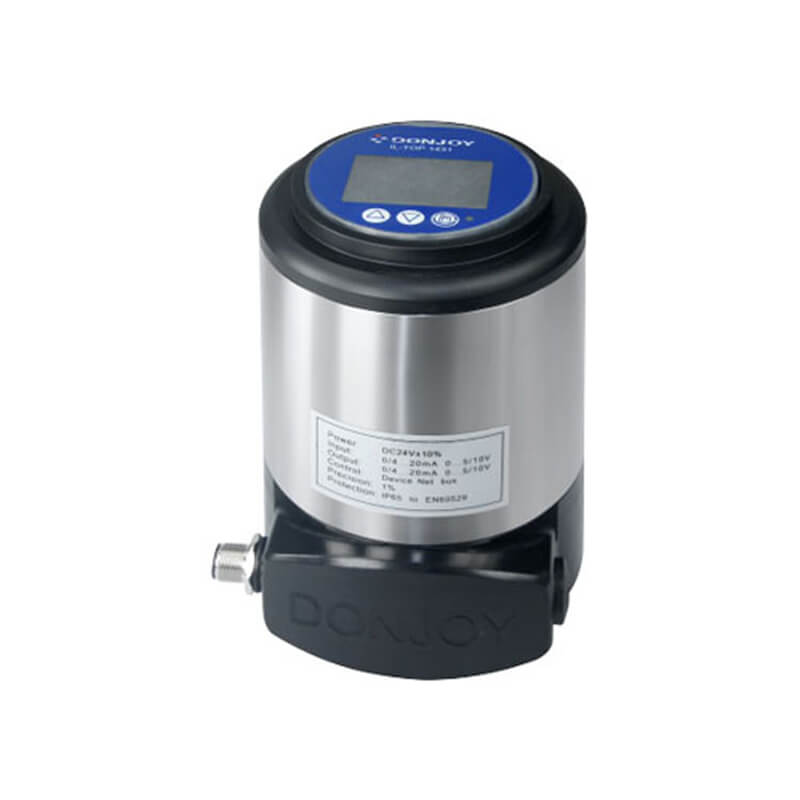

Valve Positioner IL-TOP 1831

Donjoy Valve Positioner IL-TOP 1831 is a PID process control valve positioner, It has the positioning speed, high precision, Including receive analog signals 0/4-20mA, used to control all types flow proportional control valve. IL-TOP can be installed on any of the process valves, for food, beverage and biopharmaceutical, chemical and other industrial fields. IL-TOP communication with RS485 communication protocol, half-duplex mode, maximum communication speed 115200 BPSUsing a simple command format MODBUS RTU, convenient to use. The maximum sampling rate of 2 times/sec. The positioner can be composed of the twisted-pair network via RS485 bus, Especially suitable for the computer control system.

Details about Valve Positioner IL-TOP 1831

Specification

Communication support

MODE BUS RS485

Input

0/4 … 20mA to 0 … 5 / 10V signal input (standard)

Output

0/4 … 20mA to 0 … 5 / 10V position feedback output (option)

Operation

Single-acting / double acting (option)

Power supply

DC 24V ± 10%

Air pressure

5.0-7.0Bar (suggest)

Protect class

IP68

Certification

EU ATEX explosion-proof II 3 G Ex ic IIC T6 Gc

Valve Positioner IL-TOP 1831 description:

Donjoy Valve Positioner IL-TOP 1831 is a PID process control valve positioner, It has the positioning speed, high precision, Including receive analog signals 0/4-20mA, used to control all types flow proportional control valve. IL-TOP can be installed on any of the process valves, for food, beverage and biopharmaceutical, chemical and other industrial fields. IL-TOP communication with RS485 communication protocol, half-duplex mode, maximum communication speed 115200 BPSUsing a simple command format MODBUS RTU, convenient to use. The maximum sampling rate of 2 times/sec. The positioner can be composed of the twisted-pair network via RS485 bus, Especially suitable for the computer control system.



valve positioners

Intelligent Valve Positioner Specification

● Support: MODE BUS RS485
● Input:0/4-20mA with feedback version 0–5/10V
● Single-acting (standard), Double acting (option)
● One-touch auto-tuning function valve position
● Support for manual operation
● Power supply: DC 24V ± 10%
● Size: 1″-12″, DN10-DN300
● Material: 304 / 316L
● Max Pressure: 10bar
● Temperature: 130 ℃
● Inner surface roughness: Ra0.4μm (option)
● Connection: Weld, Clamp, Thread, Flange and Other standards

Functions

● 0/4 … 20mA to 0 … 5 / 10V signal input (standard)
● 0/4 … 20mA to 0 … 5 / 10V position feedback output (option)
● Mod bus (RS485)control (option)
● Device NET bus control (option)
● Single-acting / double acting (option)
● Linear actuator / rotary actuator (option)
● Power: DC.24V
● Air pressure: 5.0-7.0Bar (suggest)
● Protect class: IP68



Valve Positioner Advantage

1.We manufacture diaphragm valve for more than 20 years, manufactured more than 600,000 pcs.

2.Which means we updated and optimized diaphragm valve for many times, and solve the problem in advance, more stable quality.

3. No dead angle.

4.Seal imported from Denmark

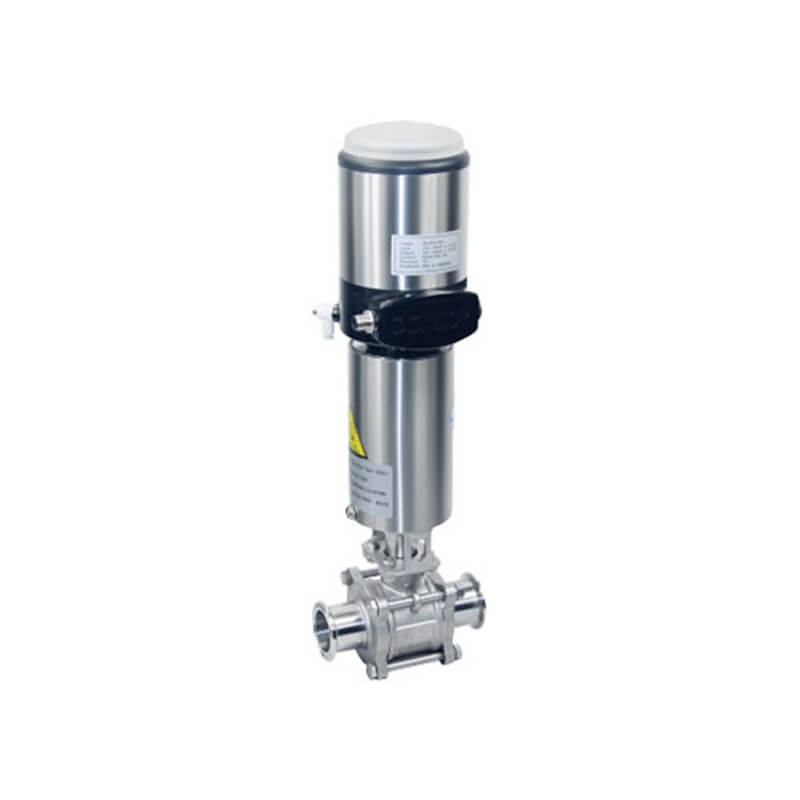

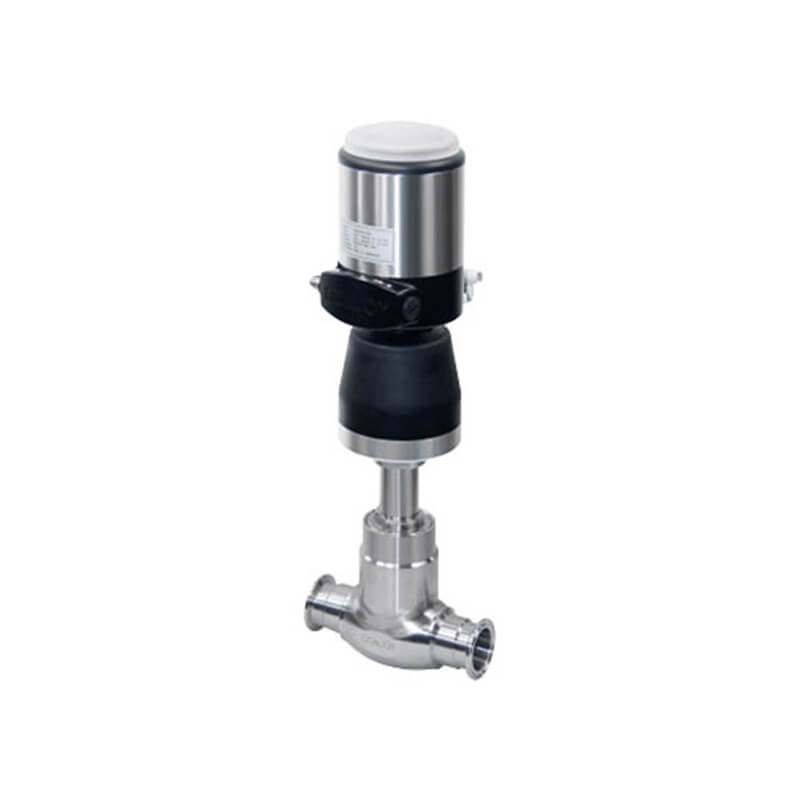

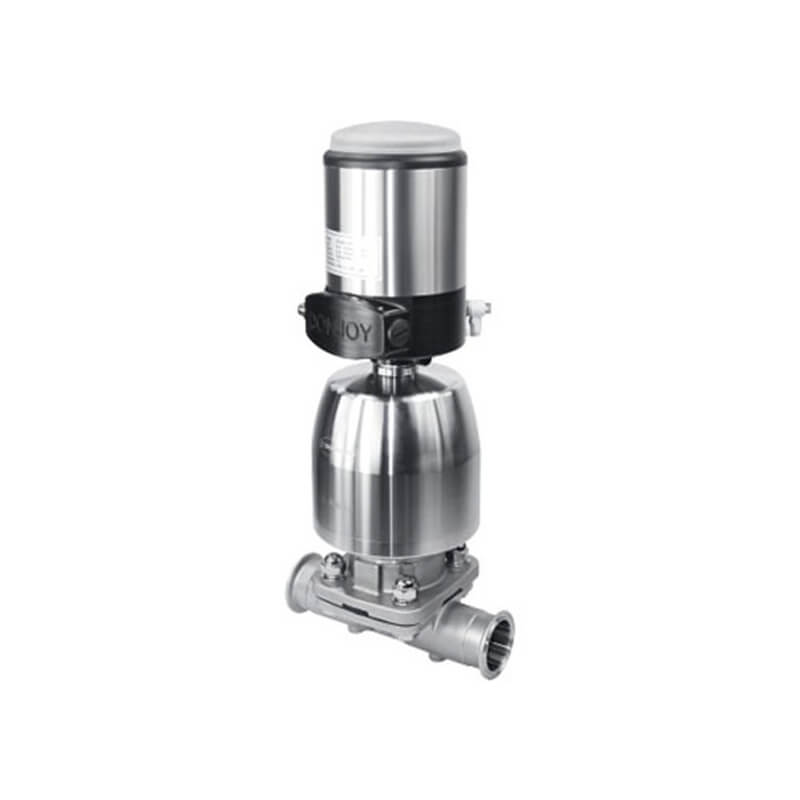

Valve Positioner suitable for different valves

valve positioner for different sanitary valve





Valve Positioner Menu Operations and Function Settings

menu operations and function settings





Valve Positioner Removal and Installation

removal and installation

Valve positioner wiring instructions

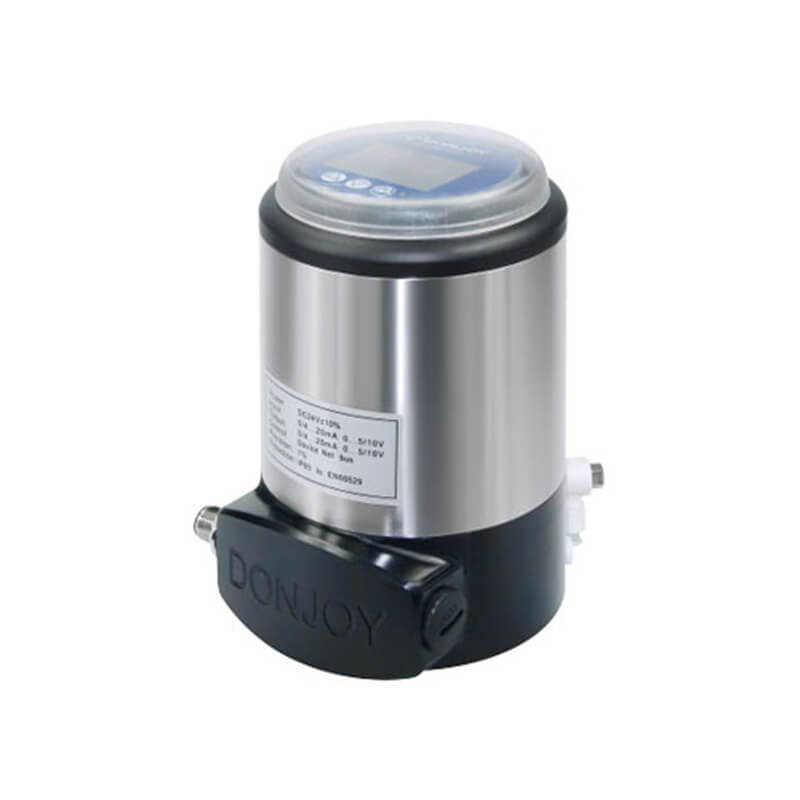

Model 1831 Valve Positioner
Model 1831 Valve Positioner
