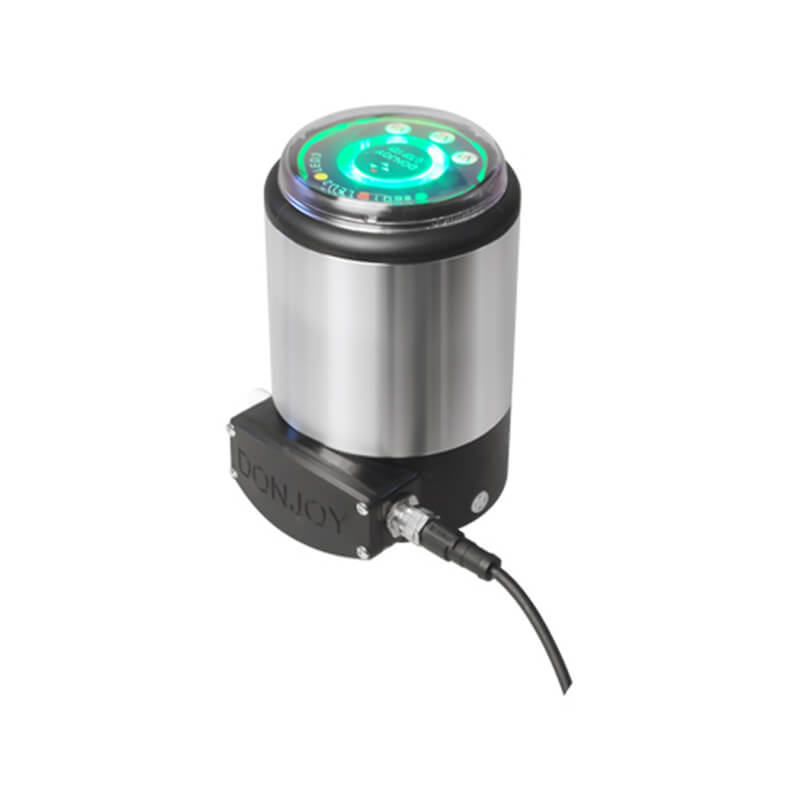

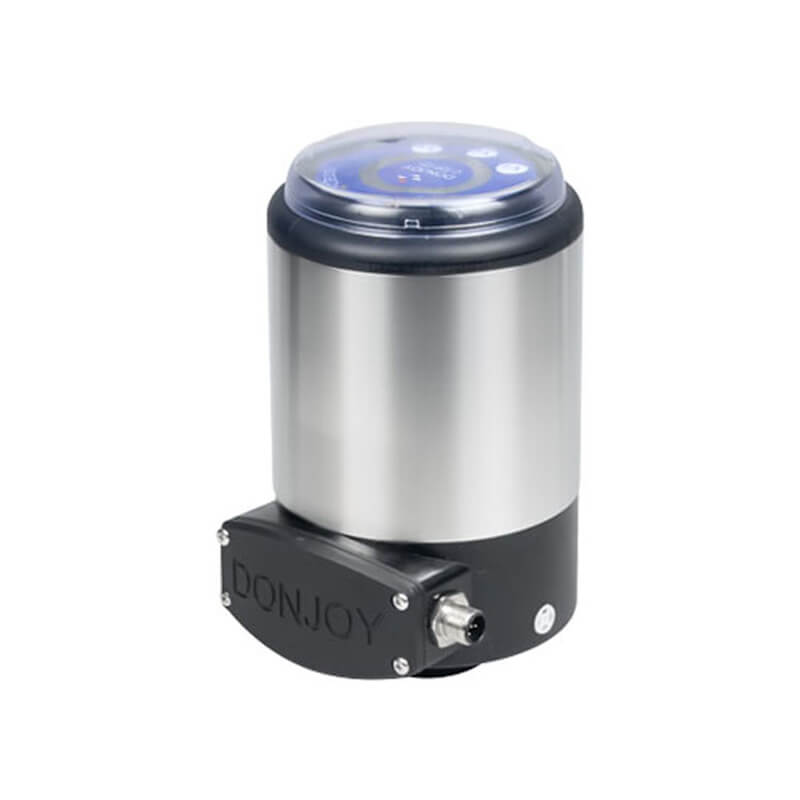

Valve Control Unit C-TOP-1721

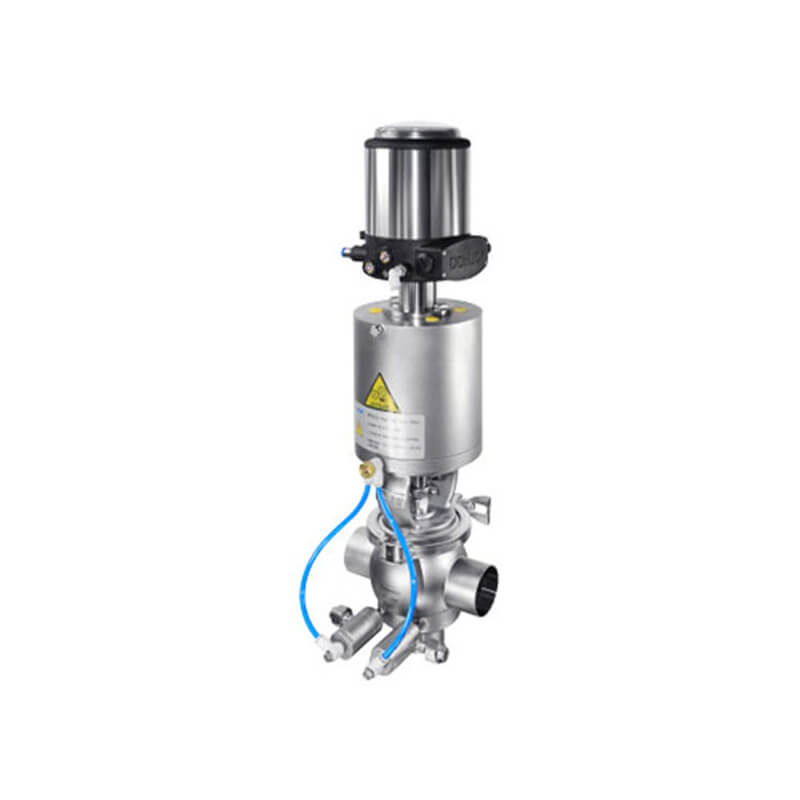

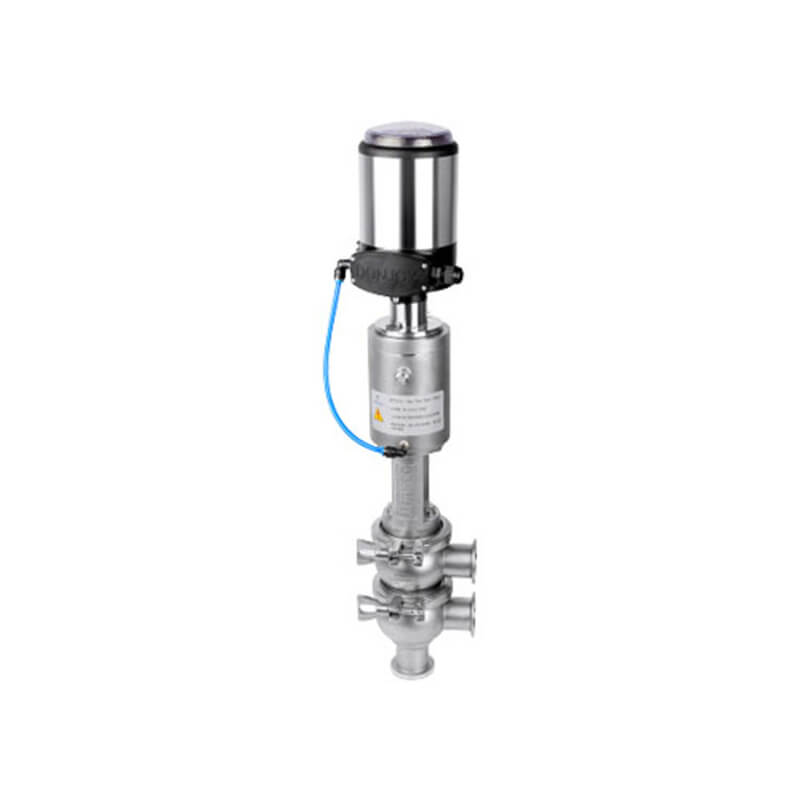

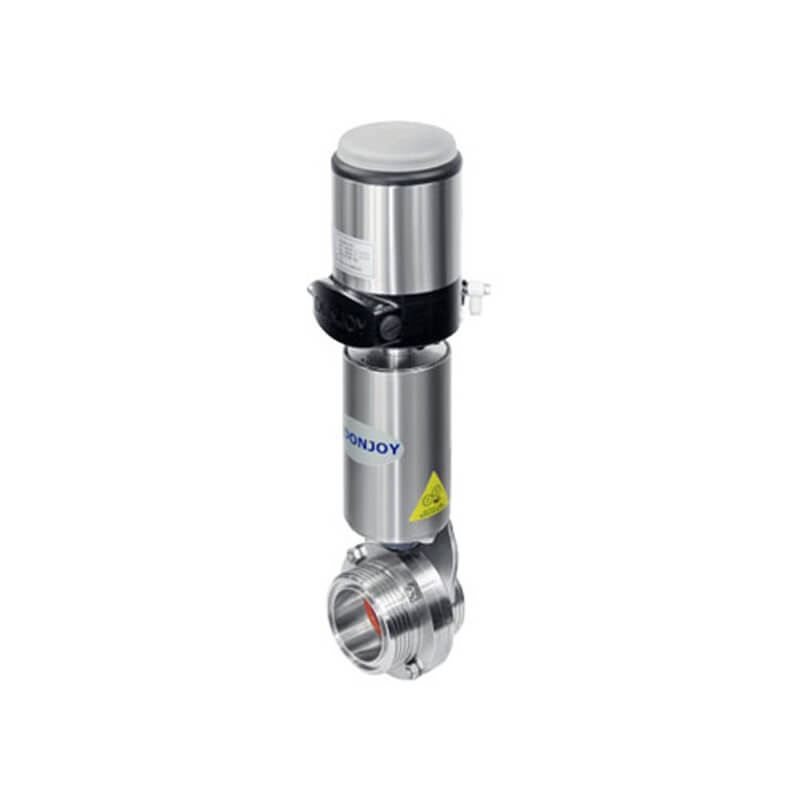

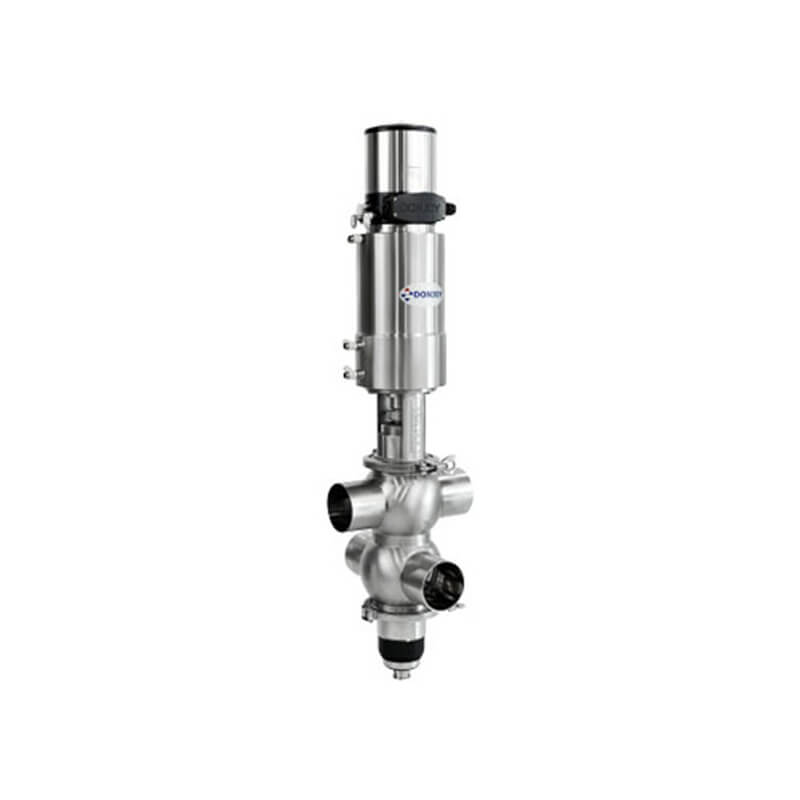

Donjoy Valve Control Unit C-TOP-1721 is a straight-stroke pneumatic valve control unit designed for valve process control. It‘’s compatible with most PLC (programmable logic controller) automation systems with digital communication or bus communication (AS- I BUS). Including position feedback output, three-segment LED display, anti-leak function, valve opening and closing control, etc., It used to control all types of process valves. It can be installed on various pneumatic valves, e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, reversing valves, mixing proof valves, etc.

Details about Valve Control Unit C-TOP-1721

Specification

Communication support

AS-I-BUS

Input

PNP DC 24V

Output

PNP DC 24V & 4-20mA

Operation

automatic & manual

Power supply

DC 24V ± 10%

Air pressure

5.0-7.0Bar (suggest)

Protect class

IP67

Certification

EU ATEX explosion-proof II 3 G Ex ic IIC T6 Gc

Valve Control Unit C-TOP-1721 description:

Donjoy Valve Control Unit C-TOP-1721 is a straight-stroke pneumatic valve control unit designed for valve process control. It‘’s compatible with most PLC (programmable logic controller) automation systems with digital communication or bus communication (AS- I BUS). Including position feedback output, three-segment LED display, anti-leak function, valve opening and closing control, etc., It used to control all types of process valves. It can be installed on various pneumatic valves, e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, reversing valves, mixing proof valves, etc.

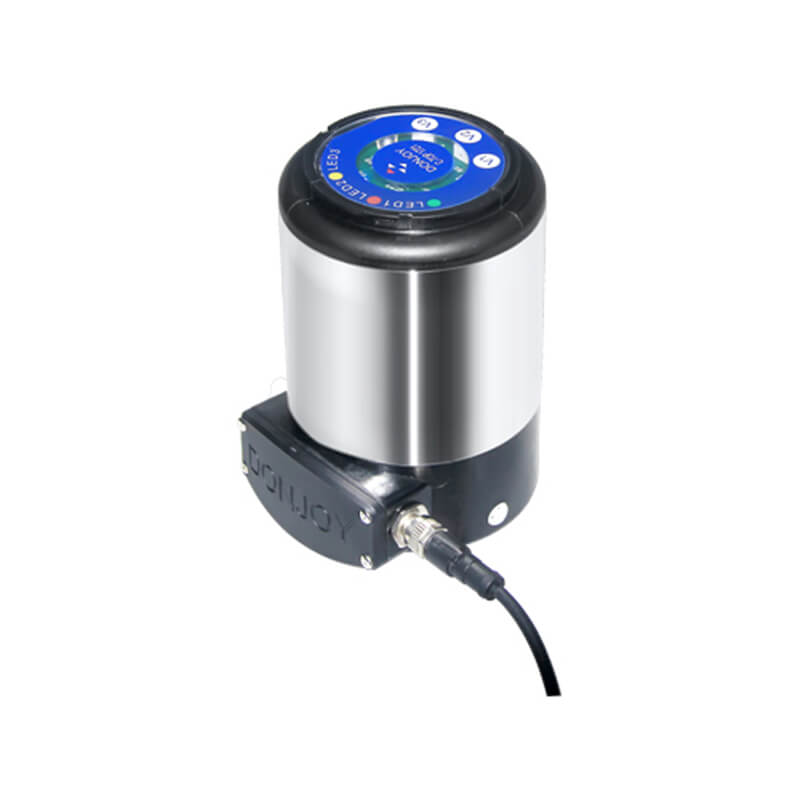

Valve Control Unit C TOP 1721

Intelligent Valve Control Top Specification

Control input: PNP DC 24V
Feedback Output : PNP DC 24V & 4-20mA
Power supply: DC24V ± 10%
Bus communication: AS-I-BUS
Accuracy: repeat positioning accuracy ≤ 0.5mm;
Setting: One-button auto-tuning function
Operating mode: automatic & manual
Leak prevention diagnostic function
Display: three-segment lamp colour
Open: green / red
Close: red / green
Middle position: yellow, suitable for anti-mix valve
Range: 0-60mm

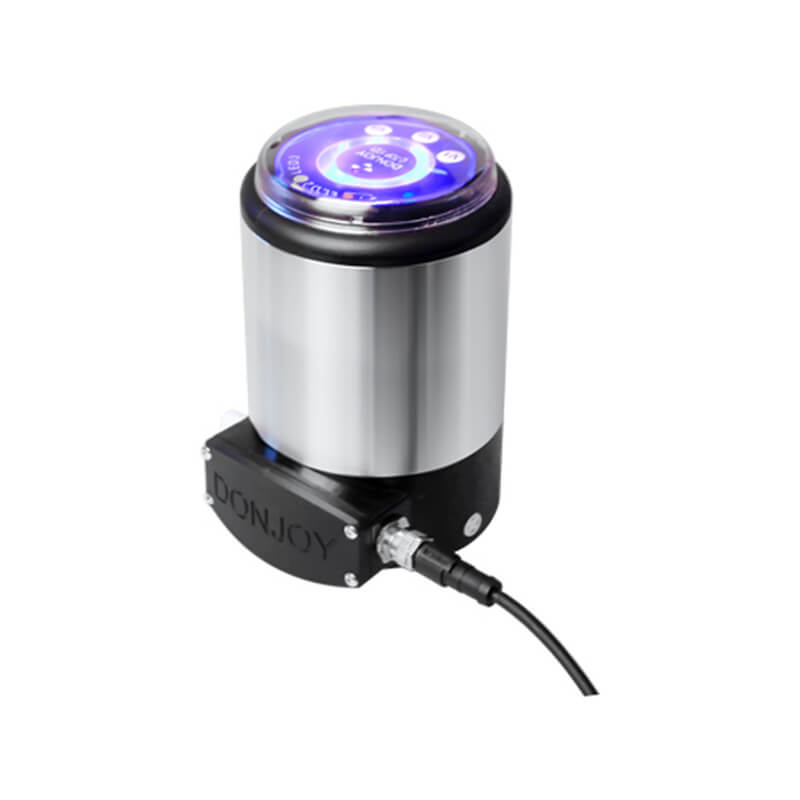

Valve Control Unit C TOP 1721 draw

Valve Control Unit Feature

  • Support AS-I Bus communication version 3.0, control maximum of 62 units
  • Self-adjustment valve position
  • Support manual or automatic operation

Valve Control Unit Working Principles

C-TOP is a head controller, incorporates signal sending and command devices to monitor all the process valves.

Feature as below:

  • Controlled by the pneumatic or electrical actuator.
  • Position indicator with signal feedback
  • The control head can be installed with pneumatic valves. It receives the signal from control board or PLC. So as to operate and send a signal to the valves. In addition, there is three LED signal indicator in the C-TOP box. Which indicate the status of the valves.
  • Green light: open
  • RED light: Close
  • Yellow: valve is operating in the third position

AS-I design and feature

Connecting sensors with solenoid valve(actuator) easily, fast economically by AS-I bus-mastering. Since cables are largely decreased, installation and start-up become more convenient. Besides, the start time is shortened, and some hidden troubles in the installation can be avoided.

Parts are the same as standard C-TOP. The only changed part is the built-in card, AS-I insulation replacement connector and the cable connector itself.



DONJOY Control TOP communications

C-TOP-1721-AS-I

C-TOP is a pneumatic controller which is designed for process control of valve. It is compatible with most PLC (programmable
logic controller) automatic system, with digital communication or AS-I BUS.Includes signal transmission and LED position
indicators to control all types of process valves.

C-TOP-1721-dcs

C-TOP is a pneumatic controller which is designed for process control of valve. It is compatible with most PLC or DCS system
(programmable logic controller) automatic system.Includes signal transmission and LED position indicators to control all types
of process valves.

C-TOP-1721-IO-LINK

IO-Link is a worldwide standardised IO technology (IEC 61131-9) for communicating with sensors and actuators. IO-Link is a
point-to-point communication system with 3- or 5-conductor connection technology for sensors and actuators and unshielded
standard sensor lines.

IO-Link devices are connected with standard commercial IO-Link masters and can easily be integrated into all commonly used
fieldbus and automation systems.3-pin or 5-pin unshielded standard cables 20 m in length between the IO-Link device and IOLink
master,are sufficient for connecting IO-Link devices with IO-Link masters



Valve Control Unit Operation

Valve Control Unit C TOP 1721 operation





Valve Control Unit Configuration

Valve Control Unit C TOP 1721 configuration
